Rotary Screw Air Compressors
Lubricated Rotary Screw Compressor 22 - 30 kW

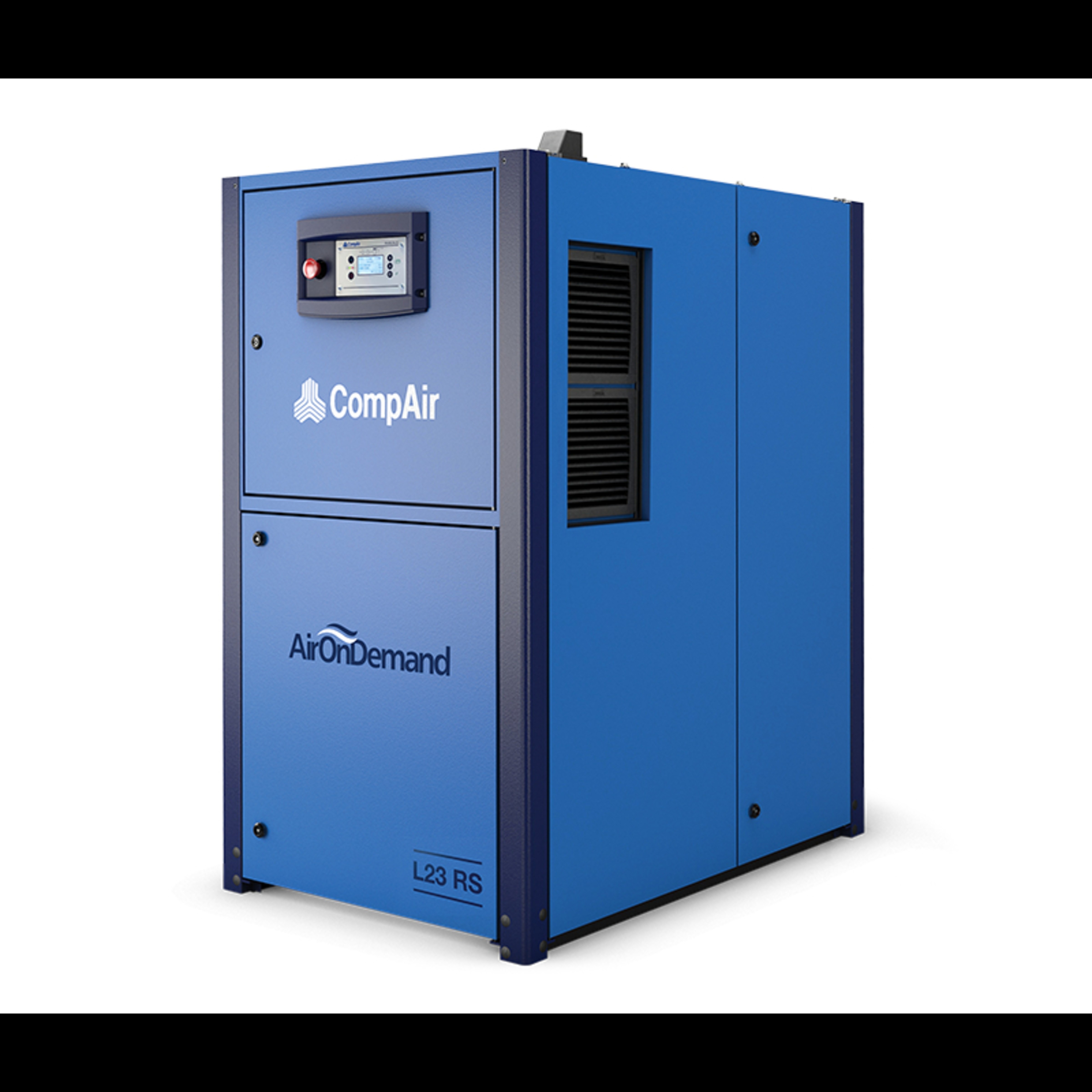

CompAir L23 - L29, RS
The L-Series from CompAir
Well known in the industry for quality and reliability CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L23-L29 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models.
Engineering Excellence
Benefits to you:
High reliability and high quality compressed air
Superior energy efficiency
High flexibility
Small footprint
Low maintenance & servicing costs
Engineering excellence
Premium efficiency airend
Time proven inverter concept
iConn industry 4.0 Solution
Integrated heat recovery
Water Separator
Compressed Air Filter
Condensate Drain Solution
Compressed Air Refrigerant Dryer
Heatless Desiccant Dryers
Heat Regenerative Desiccant Dryers
Nitrogen Generator
SmartAir Master Multi Compressor Controllers
📌 General Info on 22 – 30 kW Lubricated Rotary Screw Compressors
Industrial range: The 22–30 kW (≈30–40 HP) segment is ideal for medium industrial air demand applications — running pneumatic tools, production lines, paint booths, and continuous operations. These units deliver airflow roughly ~3.8 – 5.5 m³/min depending on pressure and model.
Oil lubrication (lubricated / oil-injected): Most compressors in this range use oil-injected screw elements, which help with cooling, sealing, and smoother continuous airflow, with typical discharge pressures from ~7 bar up to ~13 bar.
Drive types:
Fixed-Speed (FS): Simple and cost-effective — runs at rated speed.
Variable-Speed (VSD/RS): Adjusts motor speed to match air demand, improving energy efficiency especially when demand fluctuates.
Features to consider: integrated control panels, air dryers, filters, condensate drains, and noise-reduction enclosures.
🛠️ How to Choose the Right One
⚡ For steady, constant air demand: Choose a fixed-speed compressor — rugged and less costly.
💡 For varying demand: A VSD model like the one above saves energy and reduces utility costs.
🧰 For workshop use with storage: A package with a large receiver tank (e.g., 1000 L) smooths out pressure delivery and reduces cycling.
Rotary screw compressors use two meshing helical rotors to compress air. When lubricated (oil-injected), the oil:
Lubricates and cools the compression chamber
Reduces wear and friction
Results in stable, continuous operation and lower energy usage compared to piston compressors
Key features usually include:
✔ Continuous 24/7 industrial duty
✔ Lower noise (typically ~60–66 dB(A))
✔ Fixed-speed or variable-speed (VSD) options
✔ Air-cooled systems
✔ Easy automation & control systems
✔ Pressure ranges commonly 7–12 bar (some models up to ~13 bar)
Typical performance specs in this power range are:
Flow / capacity: ~2.7–5.3 m³/min depending on pressure setting
Pressure: typically 7–10 bar
Lubrication: oil-injected/separator system with <3 ppm carryover
Duty cycle: 100% continuous
🧠 Tips for Choosing the Right Compressor
🔹 Fixed speed is generally more affordable and simpler for steady workloads.
🔹 Variable speed (VSD) saves energy when air demand changes over time.
🔹 Check pressure rating (e.g., 7–12 bar) against your tool or process requirements.
🔹 Consider whether you need options like integrated dryer or tank for cleaner, dry air output.
