Lubricated Rotary Screw Compressor 7 - 22 kW
CompAir L07 - L22, RS
The design concept is based on absolute reliability and flexibility. This range incorporates the latest technological advances and components which are designed for long service life to offer operators total piece of mind. The availability of a wide range of different version and options makes them suitable for almost all applications. This ranges from additional regulated speed models, receiver mounted versions including refrigerant dryer (Airstation) and integrated heat recovery option.
Benefits
A design concept based on reliability and flexibility
Completely unified airend
The sophisticated structure of the high-efficiency air end enables it to run at reduced rotational speeds, which in turn decreases energy expenses. The cutting-edge unified configuration, which encompasses oil separation, an oil filter, and a thermostatic valve, minimizes the quantity of external pipes and parts, resulting in outstanding dependability
Combined air/oil cooler
Outfitted with a bypass for swift heating and regulation of oil temperature, this design diminishes wear, prevents condensation within the compressor system, and ensures the temperature of the expelled air remains low
High efficiency electric motor
The compressors are equipped with an energy saving IE3 electric motor
Automatic belt tensioning system
The self-maintaining system automatically ensures precise belt tension, which prolongs the lifespan of the belt
Factory-filled lubricant
Reduces service costs by extending the oil change period to up to 4, 000 hours.
Low noise levels
Enables the compressor to be situated right at the location of application
Up to 45°C ambient temperature
Reliable operation, even in challenging environments.
Design
Tailored to the specific needs of each customer, the compressors can be equipped with a variety of options for optimal versatility. The integrated models that include a receiver and/or dryer offer a compact solution, perfect for areas where floor space is at a premium.
Compressor base mounted

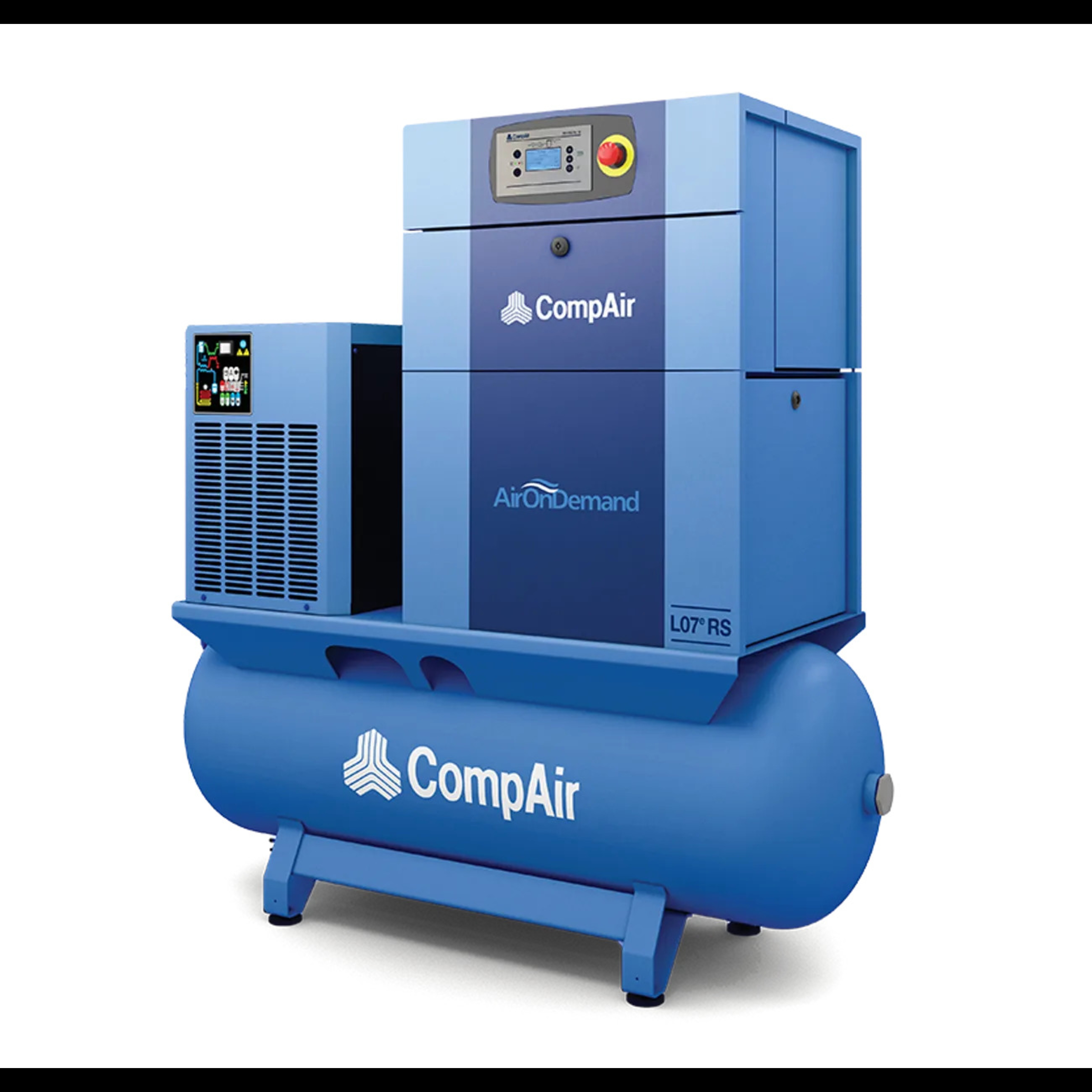

Complete package including compressor, dryer and receiver
The independent compressors boast an extremely space-efficient design, with a best-in-class footprint of merely 0, 4m2. When paired with a dryer and receiver, they allow for an optimized use of floor space, plus the setup process is quite straightforward.
In-house made airend
The superior airends are produced using cutting-edge manufacturing processes. They are engineered with an emphasis on dependability and performance efficiency. Precision in the rotor design is ensured through extensive computerized control system inspections and measurements. These airends feature a consistent specific power consumption profile, facilitating efficient operation across a broad range of rotational speeds.
The advanced design of the high efficiency airend allows operation at low rotational speeds, and consequently lowers the energy costs. The innovative integrated design, including oil separation, oil filter and thermostatic bypass valve, reduces the number of external hoses and components offering excellent reliability. The compressors are equipped with an energy saving IE 3 electric motor with reduced CO2 emissions. As the compressors offer low noise levels they can be placed at the point of use.
Controller
Delcos Pro SE compressor controller
The control system guarantees dependable functioning and safeguards the investment by persistently tracking the operational parameters. The Delcos Pro SE is also equipped with programmable inputs and outputs, can manage extra devices, and offers the following functionalities presented in legible text on a 2.8“ Graphic Display with a contemporary user interface:
Discharge/line pressure display
Air/oil temperature display
Total hours run and under load
Service due indicator
Enhanced fault log monitor
Real time clock
Timer controlled stop/start
Remote start/stop
Auto restart after power failure
Second pressure setting
Status indication
RS485 - Modbus RTU
Micro-SD-Card for alarm - & data logging
Integrated BLS-Functionality & Integrated Web-Server Light
Via or with Optional module for RS485 interface Ethernet connection
