Lubricated Rotary Screw Compressor 22 - 30 kW

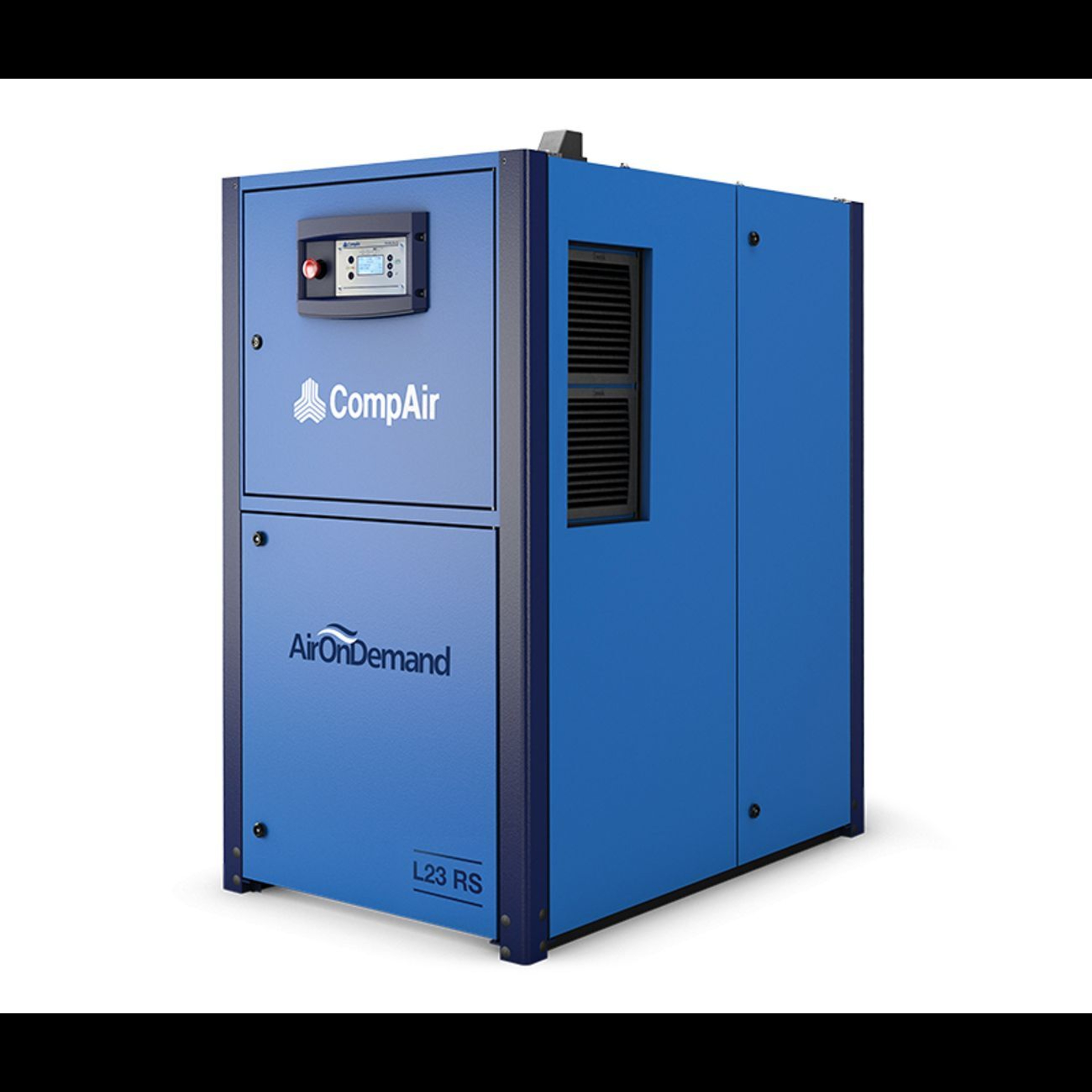

CompAir L23 - L29, RS
The L-Series from CompAir
The CompAir L23 - L29 RS series is a 22–30 kW industrial lubricated rotary screw compressor range designed for continuous-duty compressed air applications. It includes both fixed-speed and regulated-speed (RS / variable-speed) models for improved energy efficiency and stable air delivery.
Key Features
Motor power: 22 kW to 30 kW
Pressure range: 5 to 13 bar
Flow rate (FAD): 0.92 to 5.52 m³/min
Available versions:
Fixed speed (L23, L26, L29)
Variable speed / regulated speed (L23RS, L26RS, L29RS)
Integrated dryer options (LF / RSF)
Low noise operation: 67–69 dB(A)
IE3 high-efficiency motors
Integrated Delcos Pro controller
High-efficiency airend with slow rotational speed
<3 ppm oil carryover filtration system
Fixed-Speed Model Performance
Well known in the industry for quality and reliability CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L23-L29 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models.
Benefits
Engineering Excellence
Benefits to you:
High reliability and high quality compressed air
Superior energy efficiency
High flexibility
Small footprint
Low maintenance & servicing costs
Engineering excellence
Premium efficiency airend
Time proven inverter concept
iConn industry 4.0 Solution
Integrated heat recovery
Water Separator
Compressed Air Filter
Condensate Drain Solution
Compressed Air Refrigerant Dryer
Heatless Desiccant Dryers
Heat Regenerative Desiccant Dryers
Nitrogen Generator
SmartAir Master Multi Compressor Controllers
Design
A Design Concept Based on Quality
Large Surface after Cooler
High Performance Separator Filter
High Efficiency Electric Motor
Thermostatically Controlled Motor Driven Fan
Highest Quality Connections
Controller
Delcos Pro Compressor Controller
The control system ensures reliable operation and protects the investment by continuously monitoring operational parameters. The Delcos Pro also has the capability to have programmable inputs and outputs, control additional equipment as well as providing the all relevant information in clear readable text:
Discharge/line pressure display
Air/oil temperature display
Total hours run and under load
Service due indicator
Enhanced fault log monitor
Real time clock
Timer controlled stop/start
Remote start/stop
Auto restart after power failure
Second pressure setting
Status indication
RS485 - Modbus RTU
The pressure setting can be easily adjusted via the controller.
