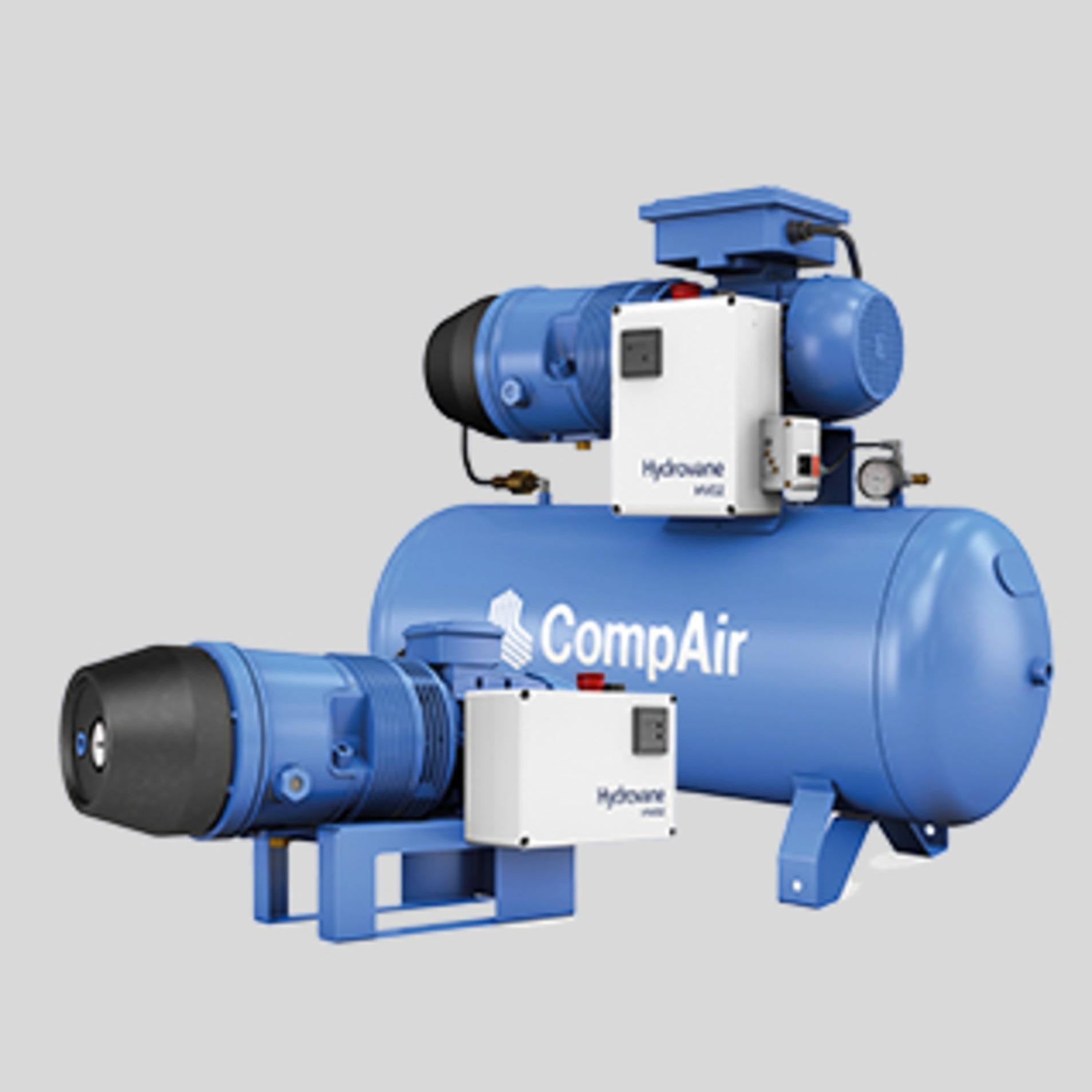

Rotary Vane Compressors - HV 01 - 04 Series
Small and compact Hydrovane HV 01 - 04 models are ideally suited for light industrial and workshop appliactions where the compressed air outlet needs to be situated close to the point of use.
Base or receiver mounted
50/60Hz
1.1- 4kW
10 bar
0.12 - 0.57 m3/min
4.3 - 20.1 cfm
Simple-to-use electronics
A high quality starter with a robust control circuit, including over-temperature protection.
Complete packages save time
Hydrovane compressors by CompAir are also available as integrated packages, promoting a more cost-effective system. These solutions include Hydrovane’s Hypac systems fully equipped with integrated membrane or refrigerant
dryers and receiver and filtration options.
Expert CompAir Authorised Distributors can advise you on the best solution for your exact industry and application needs. Our innovative package solutions can then be delivered to you as a factory-built package or supplied as a kit for local assembly.
📌 Rotary Vane Compressors – HV 01–04 Series (Hydrovane / CompAir)
🛠️ What They Are
The HV 01–04 Series are compact, oil-injected rotary vane air compressors that use a sliding vane in a rotor to compress air. This design delivers smooth, continuous, pulse-free air and is known for quiet, reliable operation with low maintenance compared with many other compressor types.
These units are typically offered in base-mounted or receiver-mounted formats and are suitable for workshops, light industrial uses, laboratories, printing, pneumatics, and other applications where a smaller footprint compressor is ideal
🔍 Design & Features
✅ Rotary Vane Technology
Uses a rotor with sliding vanes that trap and compress air in decreasing volume chambers.
Only one primary moving part → fewer wear points, leading to high reliability and long life.
✅ Oil-Injected Compression
Oil helps with sealing, cooling, and lubrication inside the compression chamber.
Delivers clean, dry air with low oil carryover for most general applications.
✅ Quiet, Efficient Operation
Slow speed operation and direct drive help keep noise and vibration down.
Low noise makes these models suitable for installation close to the point of use on a plant floor or in a workshop.
✅ Simple Controls
Equipped with basic control electronics, over-temperature protection, and easy-to-operate starter systems.
✅ Flexible Packaging
Can be supplied as stand-alone units or integrated packages with:
Air receivers
Aftercoolers
Dryers and filters
These options make installation and system integration easier.
