Twin Tower Heatless Desiccant Dryers

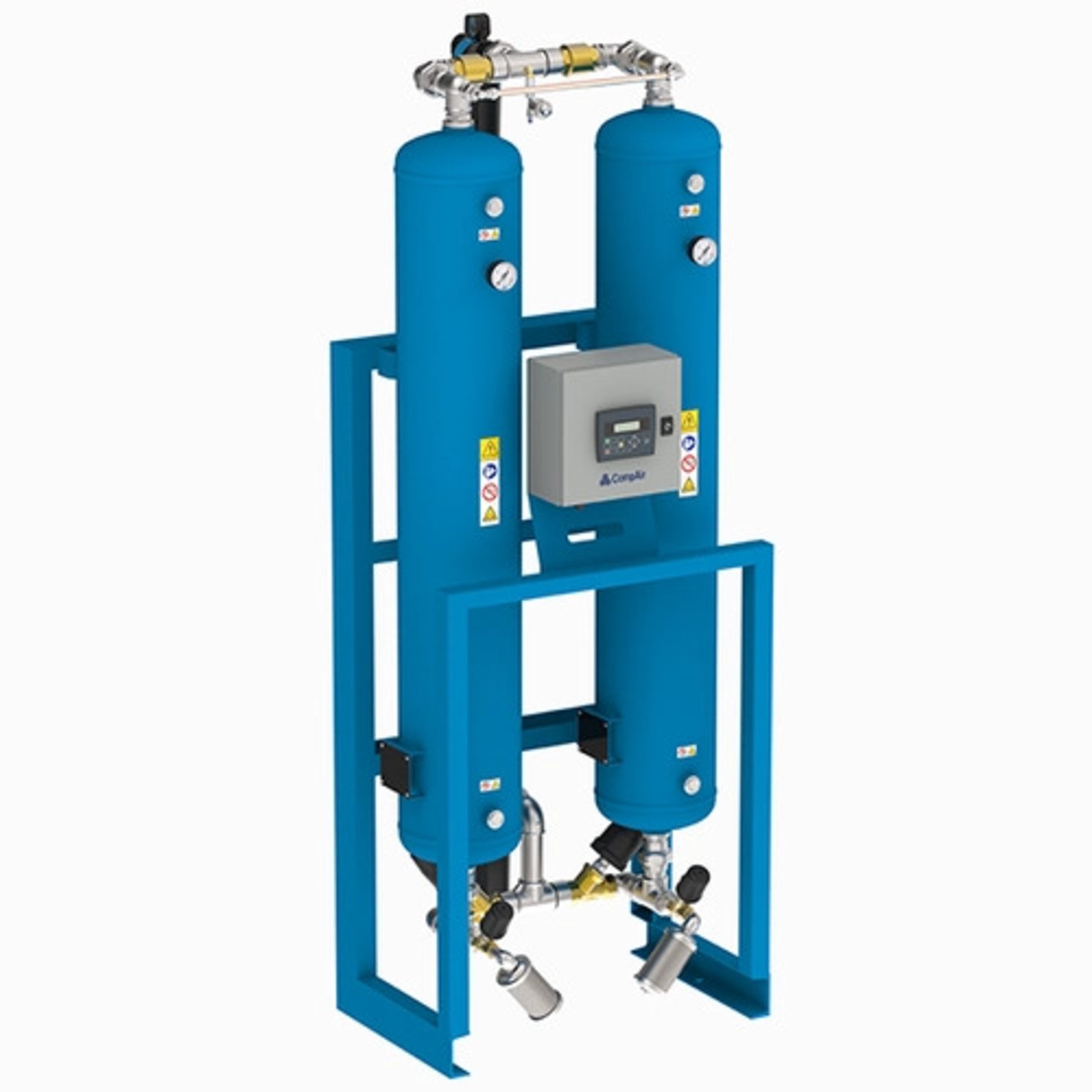

The CompAir AX-Series uses twin desiccant towers and strategically positioned valves to dry the compressed air.
The compressed air produced is thoroughly dried as it is directed through the on-line desiccant-filled tower of the dryer. As the desiccant in this tower adsorbs moisture from the air, the desiccant in the dryer’s offline tower is purged of moisture and readied for use.
Advantages at a glance:
High Reliability - proven technology used in thousands of applications and installations worldwide.
Low Capital Investment - large range, available for precise sizing to suit your needs.
High Air Quality - pre and post filter included, helping you to meet stringent air quality requirements.
Energy Efficient - with the optional high efficiency Energy Management System (EMS) offers even greater efficiency.
Standard features include:
High Efficiency Pre Filter and Dust Filters
IP54 electrical enclosure
Digital controller
Tower pressure gauges
Colour change moisture indicator
Optional features include:
Energy Management System (EMS) with dew point display
Fail-to-Shift alarm - Monitors the dryer sequencing functions to ensure proper dryer operation by sensing the pressure in each tower, sending an alarm in case of anomalies. This option is available from models 1000m3/h and above
IP65 electrical rating plus stainless steel control box
4-20 mA signal (requires EMS) is available should you need to get 4-20mA to your SCADA system
Different tower vessels design code
Stainless steel control air tubing
Filter monitoring - Differential pressure switches installed on filter monitor performance. Display options include analog and digital
-70˚C pressure dew point
No air loss drain for filters with alarm
Marine paint
