Rotary Screw Air Compressors
L45+ to L132RS
CompAir lubricated rotary screw compressors incorporate the very latest technological advances and guarantee a continuous supply of high quality compressed air.

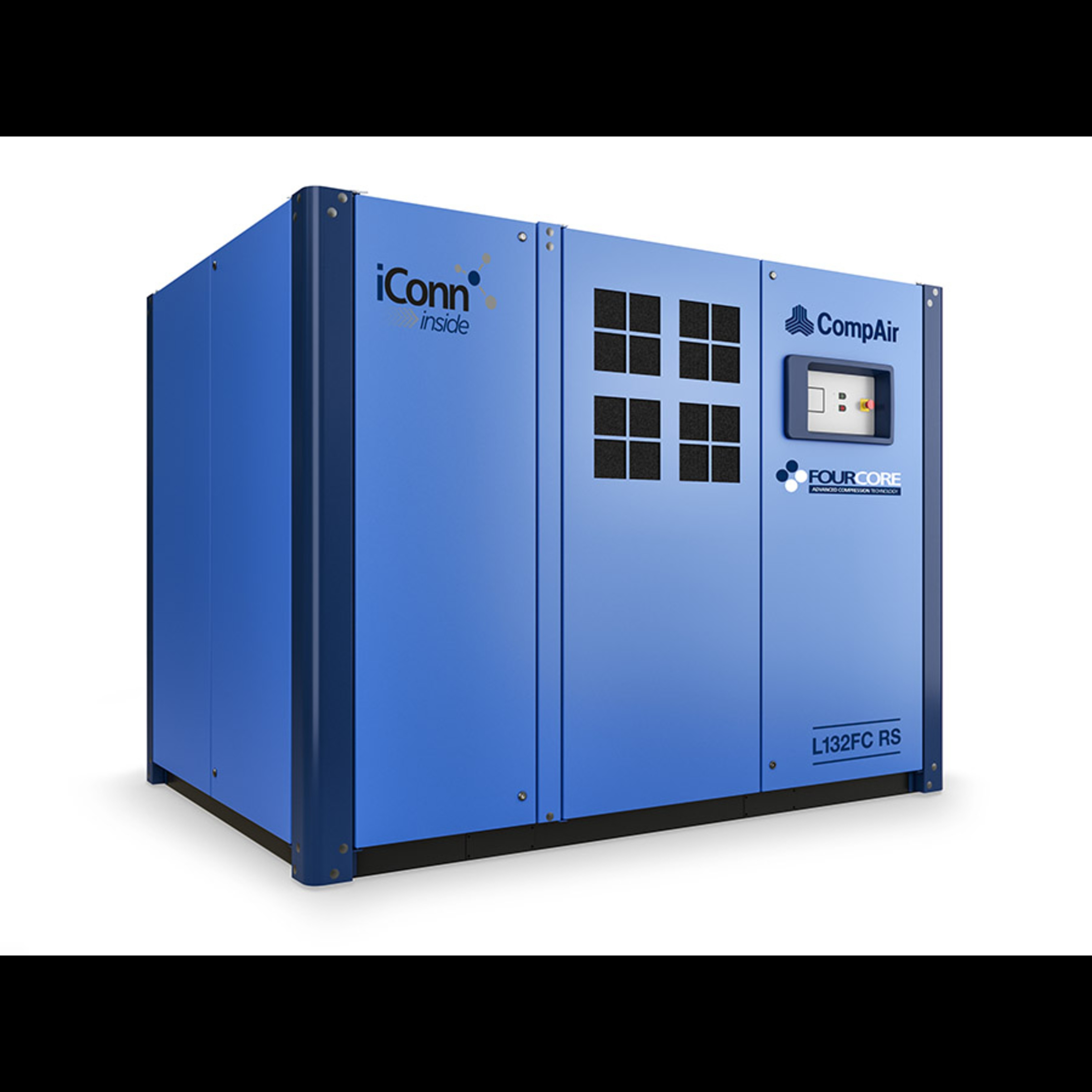

New CompAir FourCore range balances two-stage efficiency with single-stage footprint
CompAir has announced the launch of its new 110 to 250 kW FourCore compressor range, combining best-in-class compressed air efficiency with a small footprint and sustainable design for eco-conscious businesses.
The FourCore range offers all the capabilities of a two-stage compressor, but with only the footprint of a single-stage unit. It therefore provides businesses – who might not have previously had the on-site space available – the opportunity to take advantage of the capabilities of two-stage technology. And when compared with previous single-stage compressors in this size range from CompAir, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution for decision makers.
Our application engineering team, based at the Simmern Centre of Excellence production site in Germany has designed and engineered a brand new, patented technology that offers best-in-class energy efficiency. They have developed a premium efficiency 2-stage model for fixed and regulated speed compressors using the new technology of the compact double stage airend. What’s unique about this design is that the airend has 1 motor and 4 rotors located in a single, semi-integrated casting. This differs from traditional 2-stage compressors, providing a compact package with high energy savings. In fact, these machines are the same size as a 1 stage machine due to new airend technology.
Click the design tab above to learn more
The L-Series from CompAir
Well known in the industry for quality and reliability, CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L45+ - L132 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models. All models are optionally available with integrated heat recovery.
Benefits:
Engineering Excellence
Premium Efficiency Airend
Wide Regulation Range
Perfect Motor - Drive - Airend Design
Compressed Air Purification
Water Separator
Compressed Air Filter
Condensate Drain Solution
Compressed Air Refrigerant Dryer
Heatless Desiccant Dryers
Heat Regenerative Desiccant Dryers
Nitrogen Generator
SmartAir Master Multi Compressor Controllers
📊 L-Series Compressor Range (45 kW to 132 kW)
This range is part of the L-Series lubricated rotary screw compressors, typically from CompAir (and similar designs by other brands). They cover both fixed-speed and regulated-speed (RS) variants:
Example options:
CompAir L45 Rotary Screw Compressor – ~45 kW class industrial screw compressor, known for reliable, oil-lubricated operation.
45 kW Rotary Screw Air Compressor – General industrial unit around 45 kW.
Industrial Rotary Screw Air Compressor – A broad class compressor suitable for medium industrial use.
Industrial Rotary Screw Air Compressor with Low Maintenance – Focused on lower upkeep cost.
⚙️ Typical range characteristics (45 kW–132 kW fixed):
Motor Power: ~45 to ~132 kW
Airflow: Approx. 8 – 23 m³/min (depending on model)
Pressure: ~7–13 bar (varies by configuration)
Lubrication: Oil-injected for cooling and sealing
