Rotary Screw Air Compressors
Lubricated Rotary Screw Compressor 22 - 30 kW
CompAir L23 - L29, RS
The L-Series from CompAir
Well known in the industry for quality and reliability CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L23-L29 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models.
Engineering Excellence
Benefits to you:
High reliability and high quality compressed air
Superior energy efficiency
High flexibility
Small footprint
Low maintenance & servicing costs
Engineering excellence
Premium efficiency airend
Time proven inverter concept
iConn industry 4.0 Solution
Integrated heat recovery
Water Separator
Compressed Air Filter
Condensate Drain Solution
Compressed Air Refrigerant Dryer
Heatless Desiccant Dryers
Heat Regenerative Desiccant Dryers
Nitrogen Generator
SmartAir Master Multi Compressor Controllers

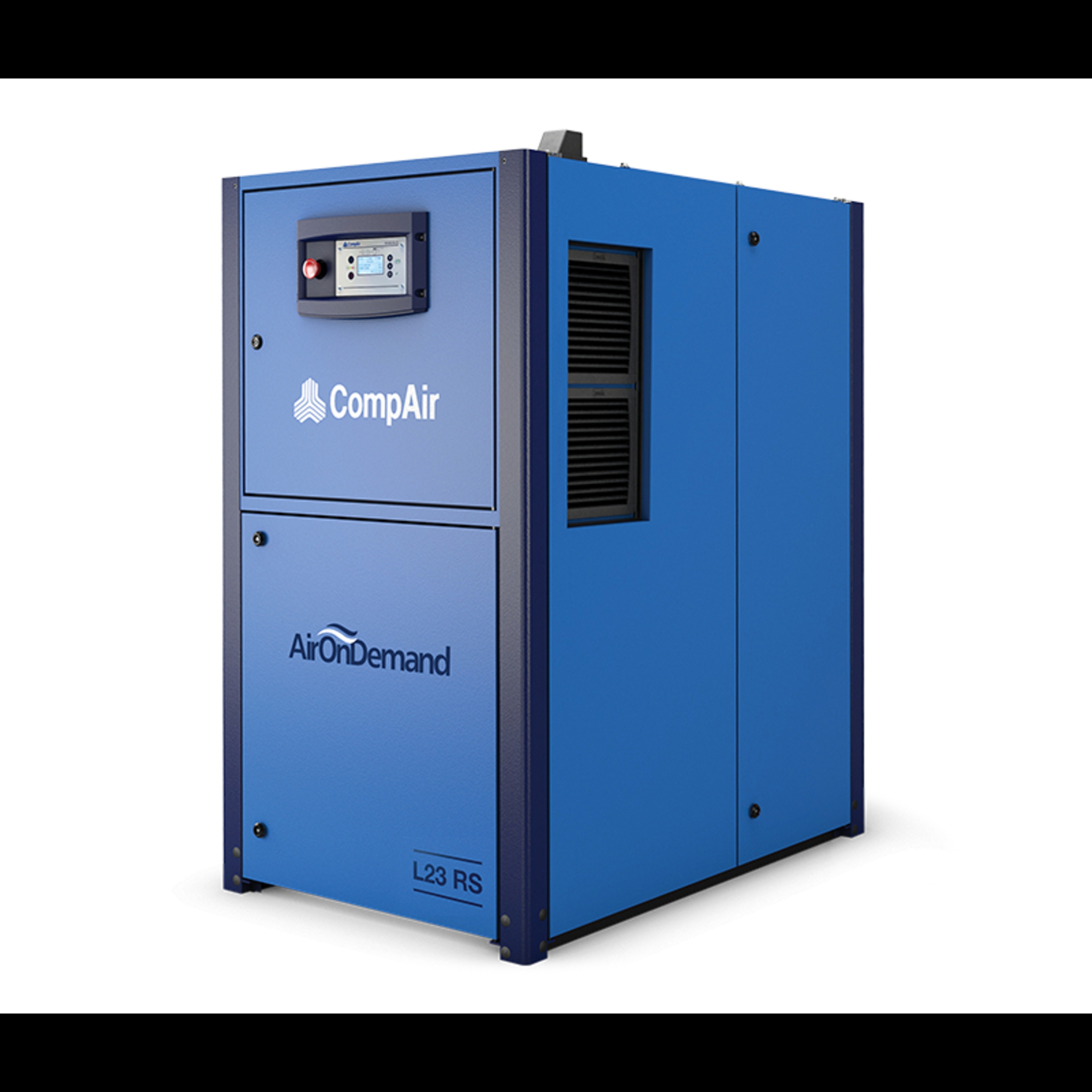

The CompAir L23–L29 RS range are lubricated rotary screw compressors designed for industrial compressed air applications in the 22 – 30 kW power class. These are available in both fixed-speed and regulated-speed (RS / variable speed) models for optimized performance and energy use.
🛠️ Key Features & Benefits
✔️ Superior Energy Efficiency
Built with an in-house high-output airend operating at slower speeds to reduce energy consumption.
Regulated Speed (RS) models adapt output to actual air demand, cutting idle energy waste.
✔️ High Reliability & Low Maintenance
Integrated oil filter, oil regulation valve, and fail-safe shaft seal reduce external hoses and potential failure points.
Designed for trouble-free operation with premium quality components and ease of service.
✔️ Small Footprint & Flexible Installation
Compact footprint suitable for workshop and plant installations where space is limited.
Available with integrated peripherals such as refrigerant dryers and heat recovery options.
✔️ Advanced Monitoring & Industry 4.0
Supports modern controls and, in some markets, iConn Industry 4.0 connectivity for remote monitoring and analytics.
📊 Typical Specifications (22–30 kW Range)
General values for the L23 to L29 models:
Specification Approx. Range
Motor Power 22 – 30 kW (30–40 HP)
Pressure Range ~5 – 13 bar
Airflow / Volume Approx. 0.92 – 5.52 m³/min (varies by model & pressure)
Noise Level ~67 – 69 dB(A)
Dimensions ~1345 × 880 × 1612 mm
Weight ~650 – 712 kg
(Exact figures vary by specific model — L23, L26, L29 and fixed vs RS versions.)
🧠 Typical Applications
These compressors are ideal for industrial environments requiring high-quality compressed air such as:
Manufacturing facilities
Workshops and tooling operations
Automotive paint booths and tooling
Packaging and processing lines
General pneumatic systems
The regulated speed variants are especially useful where air demand fluctuates, saving on operating costs.
📌 Summary
The CompAir L23–L29 RS range offers a balance of:
✅ Efficient and reliable compressed air delivery
✅ Lower energy consumption compared to traditional fixed-speed units
✅ Flexible installation and scalability
✅ Advanced control and monitoring features
This makes them well-suited for medium-sized industrial compressed air systems where performance and operating cost savings are priorities.
