HV 11 - 22 Series Rotary Vane Compressors
Hydrovane HV 11 - 22 series is enclosed for quiet operation, and with a small footprint and low noise levels these compressors can be conveniently located at the point of use.
Known for their industry-leading reliability and versatility, Hydrovane compressors have become a market favourite, loved for their durable design and cost-effective performance. Over three-quarters of a million Hydrovane compressors have been installed worldwide, strengthening their position as a tried and trusted compressed air technology.
Key Facts
Enclosed Floor Mounted
50/60Hz
11-22kW
6-10 bar
1.37 to 3.60 m3/min
48.4 to 127 cfm
Complete package options available with integrated air dryer and receiver
Regulated Speed (RS) options available to match output to air demand
iConn remote monitoring as standard
Versatile & reliable by design
Quiet as standard
With noise levels as low as 66 dB(A) a Hydrovane can be located at the point of use.
High quality air
Clean, dry and pulse free straight from the outlet means less downstream equipment required.
Slow speed
1450 - 2200 rpm speed operation results in low noise, low stresses and long life.
Direct drive
No gears, no belts. Up to 100, 000+ operating hours due to its simple integral design.

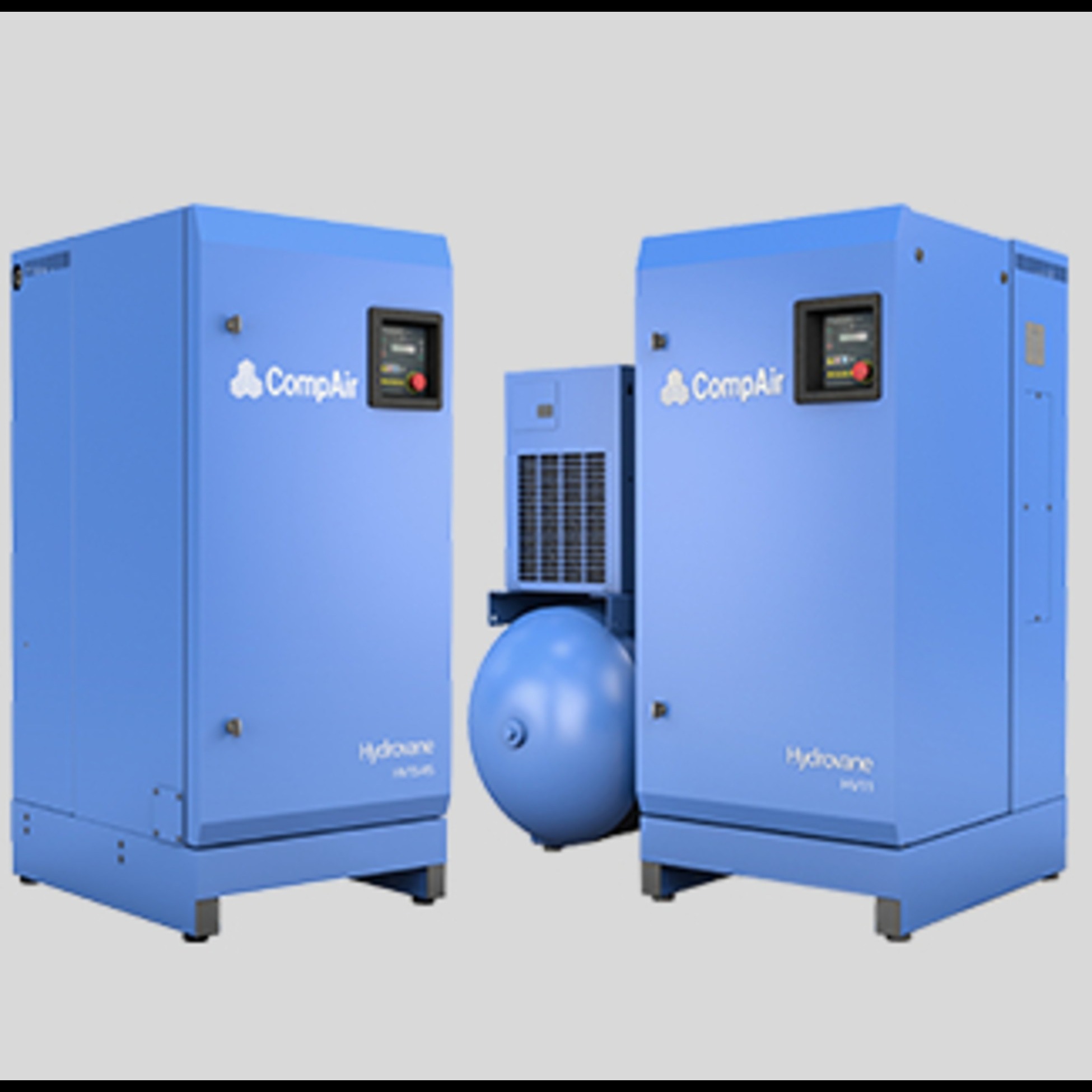

Hypac 4-22kW ERD
Fixed & Regulated Speed (RS) & 5 Series SE ACA 1.1-4kW Integrated Rotary Vane with Receiver, Dryer & Filters. You can save even further with our most comprehensive offering for optimum convenience. This solution is fully packaged with integrated receivers, refrigerant dryers and filtration, offering the best solution for your compressed air needs.
Complete Package
Integrated Refrigerant Dryer or Membrane Dryer
Integrated Receiver
Filter Pack
50 Hz
1.1 - 22 kW
6 - 10 bar
0.14 - 3.5 m3/min
4 - 125 cfm
📌 Overview: HV 11-22 Series Rotary Vane Compressors
These compressors are oil-injected rotary vane machines, engineered for continuous industrial operation with a focus on reliability, quiet performance, and high-quality compressed air delivery.
🛠️ Key Features & Highlights
Power Range: 11 kW up to 22 kW (approx. 15 HP to 30 HP) – ideal for medium-duty industrial applications.
Pressure Output: Typically 6 – 10 bar (some regions specify 8 – 10 bar).
Air Delivery: ~1.37 – 3.60 m³/min (≈48.4 – 127 cfm).
Design: Enclosed, floor-mounted package with a small footprint and low noise levels (as low as ~66 dB(A)) – suitable for installation close to the point of use.
Direct Drive: Rotor directly driven (no gears or belts) means simpler mechanics, lower maintenance and long life.
Slow Running: Operates at slow speeds (e.g., ~1450–1760 rpm), reducing wear and extending service life.
Air Quality: Produces clean, dry, pulse-free air straight from the compressor, minimizing downstream equipment needs.
Package Options: Available with integrated air dryers and receivers, and regulated speed (RS) versions to match output with demand and enhance energy efficiency.
iConn Monitoring: Many models include remote monitoring systems for performance tracking and diagnostics.
📌 How Rotary Vane Technology Works
Instead of using pistons, the compressor uses a rotor with sliding vanes inside a cylindrical stator. As the rotor turns, the vanes trap and compress air in shrinking chambers. Oil injection helps seal and cool the compression process. This design results in:
Fewer moving parts → higher reliability
Smooth airflow with low pulsation
Lower noise and vibration levels
Easier maintenance vs piston compressors
📌 Typical Applications
These compressors are well-suited for industries that require consistent, high-quality compressed air, such as:
Manufacturing & assembly lines
Pneumatics and automation
Machine tool operations
Packaging & printing
Workshops and service centers
Laboratories
📌 Summary
The HV 11-22 Series rotary vane compressors combine robust industrial performance, quiet operation, and straightforward maintenance, making them a solid choice for many medium-scale compressed air applications. They’re delivered as complete packages with options for dryers, receivers, and smart controllers to optimize efficiency and uptime.
