Refrigerant Compressed Air Dryer
High-Pressure Non-Cycling Refrigeration Dryers
Reliable High Quality Air for Demanding Environments
Maximum reliability at working pressures up to 45 barg

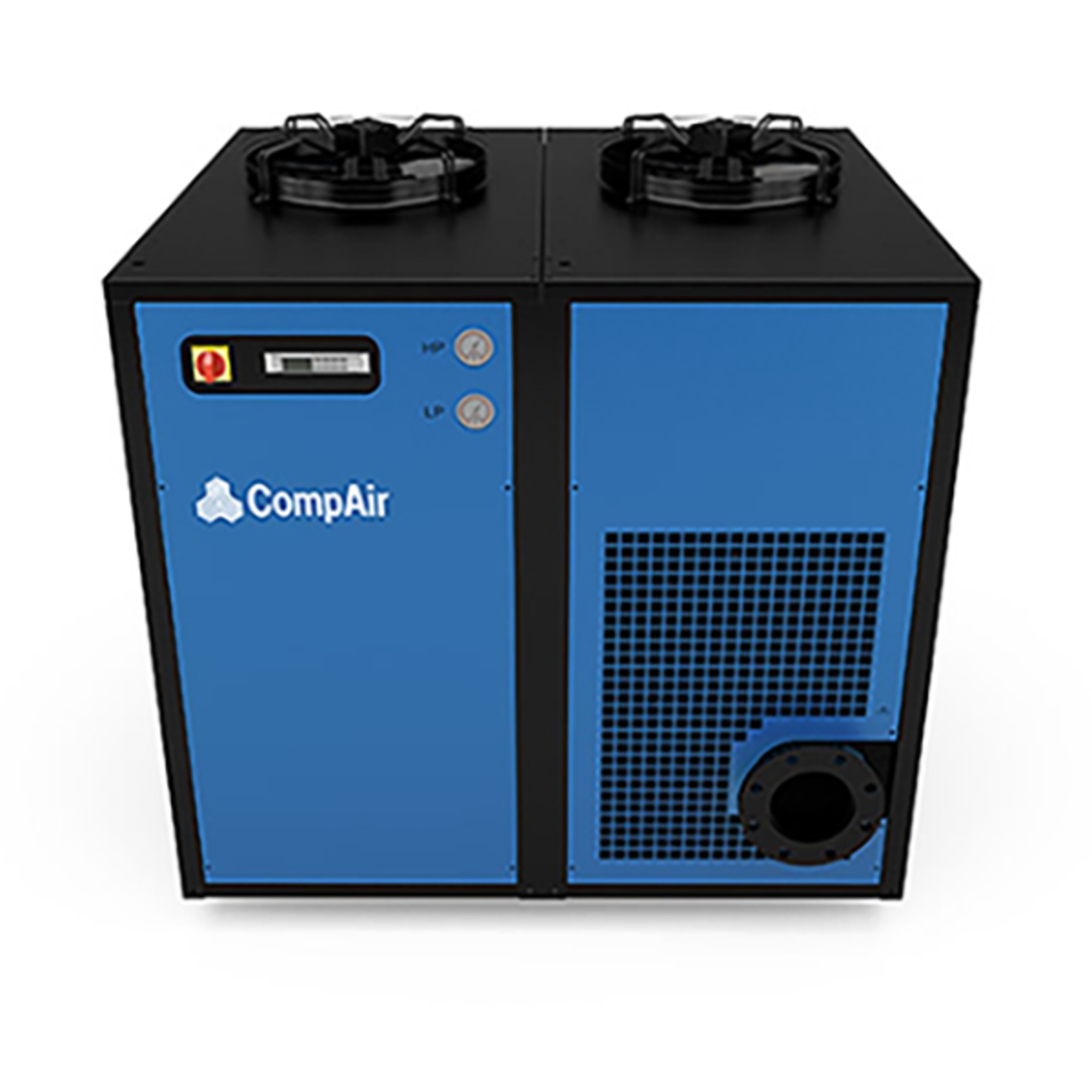

CompAir high-pressure refrigeration dryers deliver safe and constant quality, dry compressed air for various demanding environments such as PET bottle blowing, water jet cuts and aeronautical valves, in ambient temperatures of up to 50°C. Delivering consistent dew point control of +3°C for reliable and dry compressed air, this range of ten robust, compact and space-saving dryers provide maximum reliability at flow rates of between 88m3/h to 1, 200m3/h (at a nominal pressure of 40 barg).
Fully integrated three in one stainless steel heat exchangers offer reliability and long life. At the same time, energy efficiency is increased by 10% over previous models, and CO2 footprint is reduced with the use of the new R513A refrigerant. High-pressure non-cycling refrigeration dryers from CompAir – efficiency and reliability by design support the sustainability of our product and customer operations.
Features
Dew Point Indication
ON/OFF Switch
Terminal for Remote Alarm Signal
Antifreezing
Refrigerant Pressure Safety Relief Valve
Variable Speed Fan
History of Last 10 Alarms
Hot Gas By-pass Valve
Timed Electronic Drain Valve
Electric Frequency
High-Pressure Non-Cycling Refrigeration Dryers
A refrigerant compressed air dryer removes moisture from compressed air by cooling it, condensing the water vapor, and separating the liquid from the air stream.
A high-pressure non-cycling refrigeration dryer is specifically designed to operate at elevated pressures while running continuously (the refrigeration compressor does not cycle on/off).
🔧 How It Works
Hot, moist compressed air enters the dryer.
Air passes through an air-to-air heat exchanger (pre-cooling stage).
It then moves through a refrigerant-based evaporator, where temperature drops (typically to ~35–40°F / 2–4°C).
Water vapor condenses into liquid.
A moisture separator & drain system removes the condensate.
Dry, cool air exits the system.
⚙️ What “Non-Cycling” Means
The refrigeration compressor runs continuously
Capacity is controlled via:
Hot gas bypass valve
Refrigerant modulation
Ensures stable dew point
Ideal for steady load conditions
🚀 High-Pressure Capability
High-pressure models are built for:
200–725 psig (or higher depending on design)
Applications like:
PET bottle blowing
Aerospace systems
Military applications
High-pressure testing systems
They use:
Reinforced heat exchangers
Heavy-duty separators
Pressure-rated components
📊 Key Specifications (Typical Range)
Feature Typical Value
Pressure Dew Point 35–50°F (2–10°C)
Max Operating Pressure 200–725 psig
Inlet Temp Up to 120–150°F
Cooling Type Air-cooled or Water-cooled
Drain Type Automatic zero-loss drain
✅ Advantages
Simple and reliable design
Lower upfront cost vs desiccant dryers
Stable dew point performance
Minimal dew point fluctuation
Good for continuous operation
⚠️ Limitations
Not suitable for sub-zero dew points
Continuous energy consumption (non-cycling)
Not ideal for highly fluctuating loads
🏭 Best Applications
Manufacturing plants
Automotive facilities
Plastic molding operations
Industrial compressed air systems requiring consistent pressure
