Rotary Vane Compressors

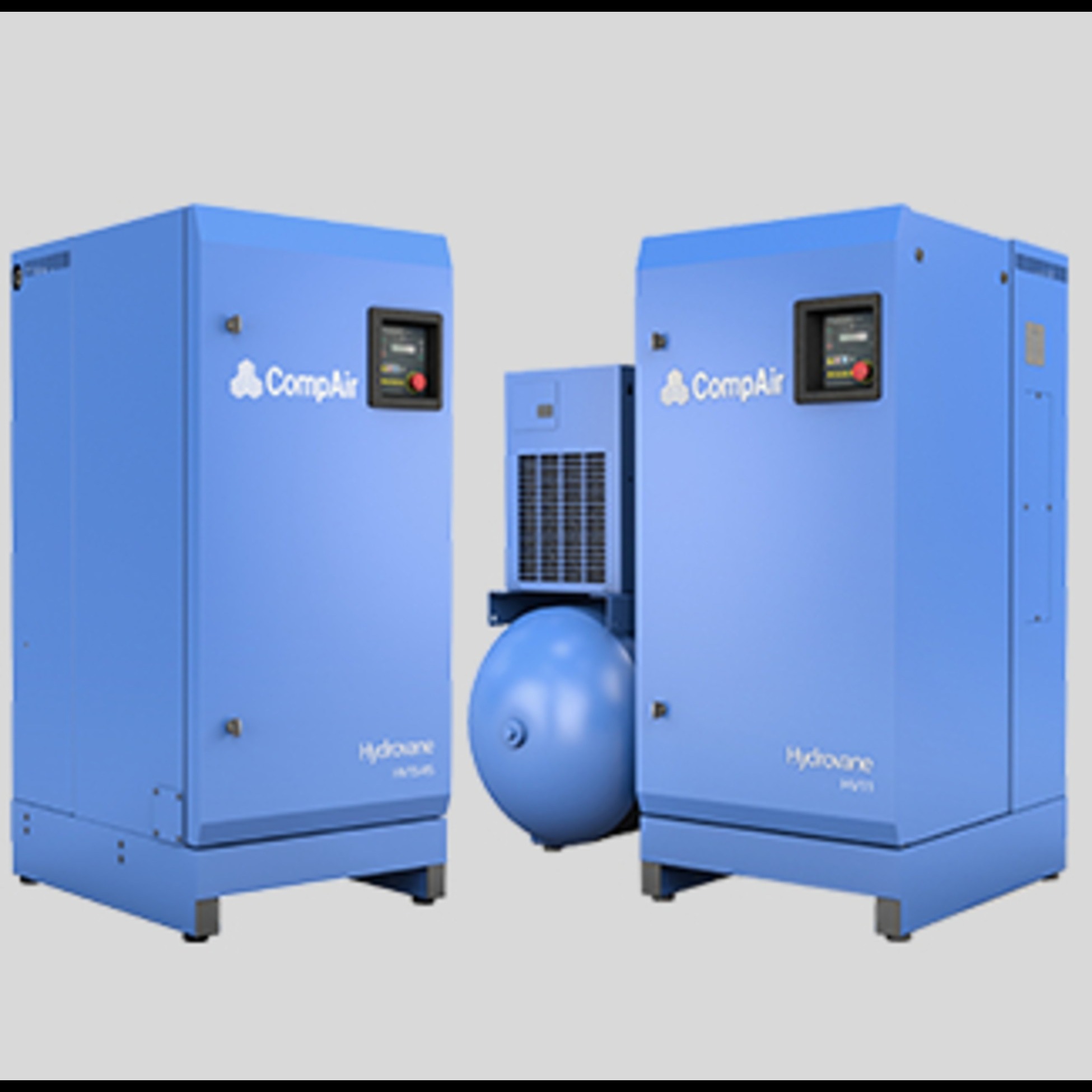

HV 11 - 22 Series Rotary Vane Compressors
Hydrovane HV 11 - 22 series is enclosed for quiet operation, and with a small footprint and low noise levels these compressors can be conveniently located at the point of use.
Known for their industry-leading reliability and versatility, Hydrovane compressors have become a market favourite, loved for their durable design and cost-effective performance. Over three-quarters of a million Hydrovane compressors have been installed worldwide, strengthening their position as a tried and trusted compressed air technology.
Key Facts
Enclosed Floor Mounted
50/60Hz
11-22kW
6-10 bar
1.37 to 3.60 m3/min
48.4 to 127 cfm
Complete package options available with integrated air dryer and receiver
Regulated Speed (RS) options available to match output to air demand
iConn remote monitoring as standard
Versatile & reliable by design
Quiet as standard
With noise levels as low as 66 dB(A) a Hydrovane can be located at the point of use.
High quality air
Clean, dry and pulse free straight from the outlet means less downstream equipment required.
Slow speed
1450 - 2200 rpm speed operation results in low noise, low stresses and long life.
Direct drive
No gears, no belts. Up to 100, 000+ operating hours due to its simple integral design.
Hypac 4-22kW ERD
Fixed & Regulated Speed (RS) & 5 Series SE ACA 1.1-4kW Integrated Rotary Vane with Receiver, Dryer & Filters. You can save even further with our most comprehensive offering for optimum convenience. This solution is fully packaged with integrated receivers, refrigerant dryers and filtration, offering the best solution for your compressed air needs.
Complete Package
Integrated Refrigerant Dryer or Membrane Dryer
Integrated Receiver
Filter Pack
50 Hz
1.1 - 22 kW
6 - 10 bar
0.14 - 3.5 m3/min
4 - 125 cfm
A rotary vane compressor is a type of positive-displacement air compressor. It uses a rotor with sliding vanes that move inside a cylindrical housing. As the rotor turns, the vanes trap air and compress it smoothly with relatively few moving parts, giving benefits such as lower noise, lower vibration, and simpler maintenance compared to piston-type compressors.
⭐ Overview: HV 11-22 Series Rotary Vane Compressors
This series is part of the Hydrovane HV range (by CompAir/Gardner Denver) and is designed for industrial compressed air needs where medium flows and pressures are required.
📊 Key Specifications
Power Range: 11 kW to 22 kW (approx. 15 – 30 HP)
Air Delivery (Free Air Delivery): ~1.37 – 3.60 m³/min (≈48.4 – 127 CFM)
Operating Pressure: typically around 6–10 bar (depends on model & options)
Package Type: Fully enclosed, floor-mounted unit with compact footprint
Speed: Slow rotation (~1450 – 2200 rpm), slowing wear and lowering noise
Drive: Direct-drive (no belts/gears) for reliability and lower maintenance
Noise Level: Low—often from ~66 dB(A) upwards
📌 Standard Features
Clean, pulse-free compressed air straight from the compressor; often less downstream treatment required.
Quiet operation, suitable for placing close to the point of use.
Optional integrated packages available with air dryer, receiver, filters, etc.
Some models include regulated-speed control to match output to demand → better energy efficiency.
Remote monitoring (e.g., iConn) available on many models for performance tracking.
📦 Typical Applications
These compressors suit industrial settings like:
Pneumatic tools and production equipment
Packaging & printing
Machine tools
Workshops and manufacturing lines
Robotics and automation systems
(consistent medium-flow compressed air)
🔧 Example Models in the Series
While there are several configurations, two examples frequently seen include:
Hydrovane HV11RS – ~11 kW, working pressure ~6-10 bar, ~0–1.74 m³/min FAD (~0-62 CFM).
Hydrovane HV22RS – ~22 kW, working pressure ~6-10 bar, ~0–3.53 m³/min FAD (~0-125 CFM).
Both are enclosed, regulated-speed versions that reduce energy use when demand varies.
🛠 Advantages of HV Series Rotary Vane Technology
Compared with other compressor types (like piston or rotary screw compressors):
✔ Fewer moving parts → reduced maintenance and longer life.
✔ Smooth airflow with low pulsation.
✔ Low noise & vibration, often quieter than piston compressors.
✔ Simple design → good for continuous duty.
