Rotary Vane Compressors
Rotary Vane Compressors - HV 01 - 04 Series
Small and compact Hydrovane HV 01 - 04 models are ideally suited for light industrial and workshop appliactions where the compressed air outlet needs to be situated close to the point of use.

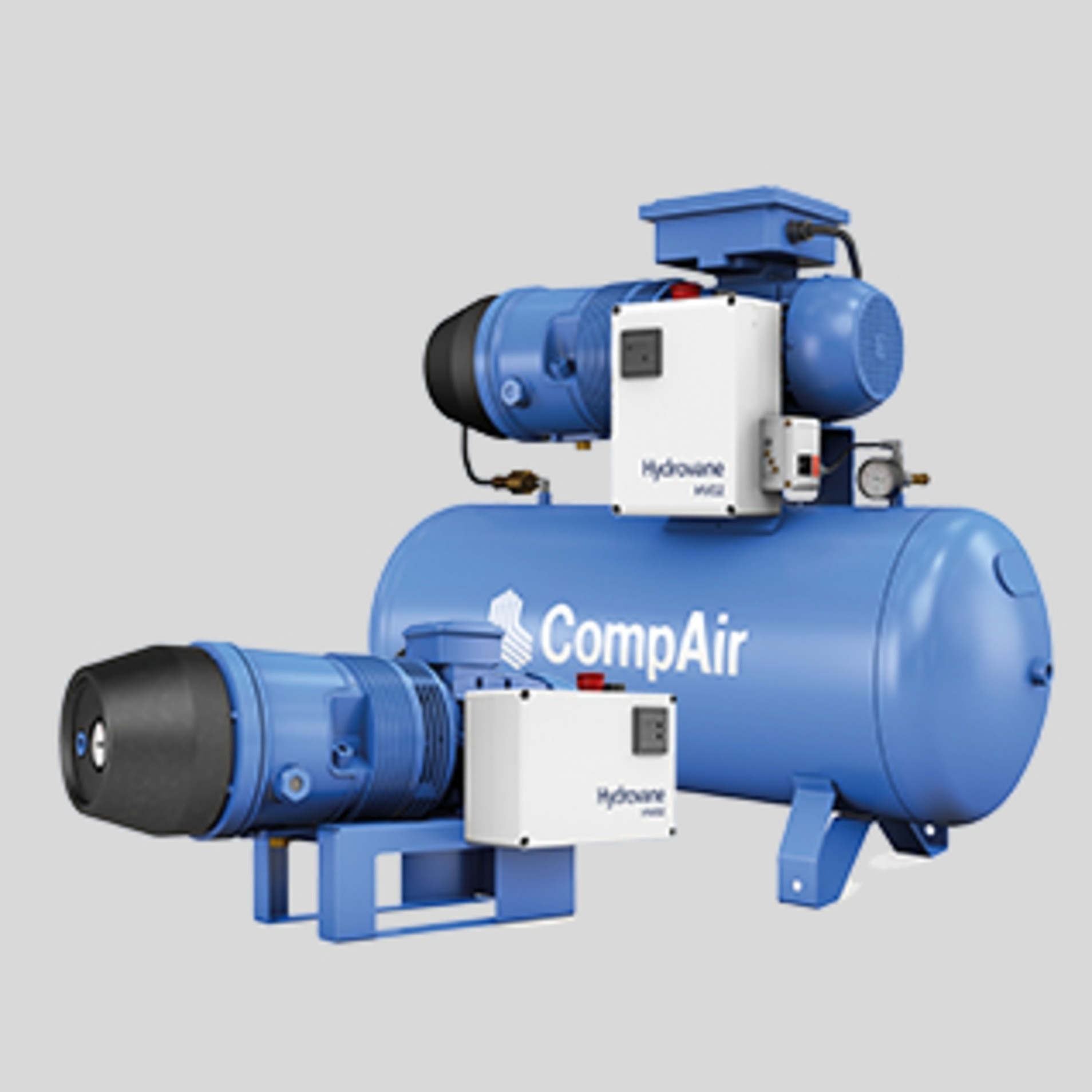

Base or receiver mounted
50/60Hz
1.1- 4kW
10 bar
0.12 - 0.57 m3/min
4.3 - 20.1 cfm
Complete packages save time
Hydrovane compressors by CompAir are also available as integrated packages, promoting a more cost-effective system. These solutions include Hydrovane’s Hypac systems fully equipped with integrated membrane or refrigerant
dryers and receiver and filtration options.
Expert CompAir Authorised Distributors can advise you on the best solution for your exact industry and application needs. Our innovative package solutions can then be delivered to you as a factory-built package or supplied as a kit for local assembly.
Rotary vane compressors are positive-displacement air compressors where a rotor with sliding vanes turns inside a cylinder. As it rotates, the vanes trap and compress air in pockets that decrease in volume, producing compressed air in a smooth, continuous flow. The oil injected into the compression chamber helps with lubrication, sealing and cooling, resulting in quiet operation and long service life.
They’re known for:
Low noise levels
Smooth, pulse-free output
Fewer moving parts
Reliable long-term operation
Ideal for point-of-use installation (near the tool or machine needing air) because they’re compact and low vibration.
📊 HV 01 – 04 Series – Compact Rotary Vane Compressors
These are smaller, compact models designed for light industrial and workshop applications where you need a reliable source of compressed air close to the point of use.
🔹 Key Specifications
Power range: 1.1 kW to 4 kW motors (≈ 1.5 hp – 5 hp)
Air delivery: approx. 0.12 – 0.57 m³/min (≈ 4.3 – 20.1 CFM)
Max operating pressure: ~10 bar (~145 psi)
Design: available as base-mounted or receiver-mounted units
Simple control: robust starter with over-temperature protection
Quiet operation: often around ~62 dB(A) or slightly higher depending on model/configuration
🛠️ Typical Uses
The HV 01 – 04 Series is well-suited for applications such as:
Small workshops
Pneumatic tools
Machine tools
Laboratories
Printing equipment
OEM installations
etc. where a modest yet reliable source of compressed air is needed.
🧠 How It Works (Rotary Vane Principle)
In this type of compressor:
Air enters through the intake.
The rotor’s vanes trap air between the rotor and cylinder wall.
As the rotor turns, the trapped air’s volume shrinks, increasing pressure.
Compressed air discharges, and oil separates before final delivery.
The result is continuous, smooth compressed air with minimal pulsation and lower noise compared to many piston-type compressors.
📌 Summary
✔ HV 01 – 04 Series are compact rotary vane compressors for light industrial use
✔ Quiet, reliable and easy to operate
✔ Ideal for workshop tools, pneumatics, lab equipment
✔ 1.1 – 4 kW motor, ~10 bar max pressure, 0.12 – 0.57 m³/min flow
