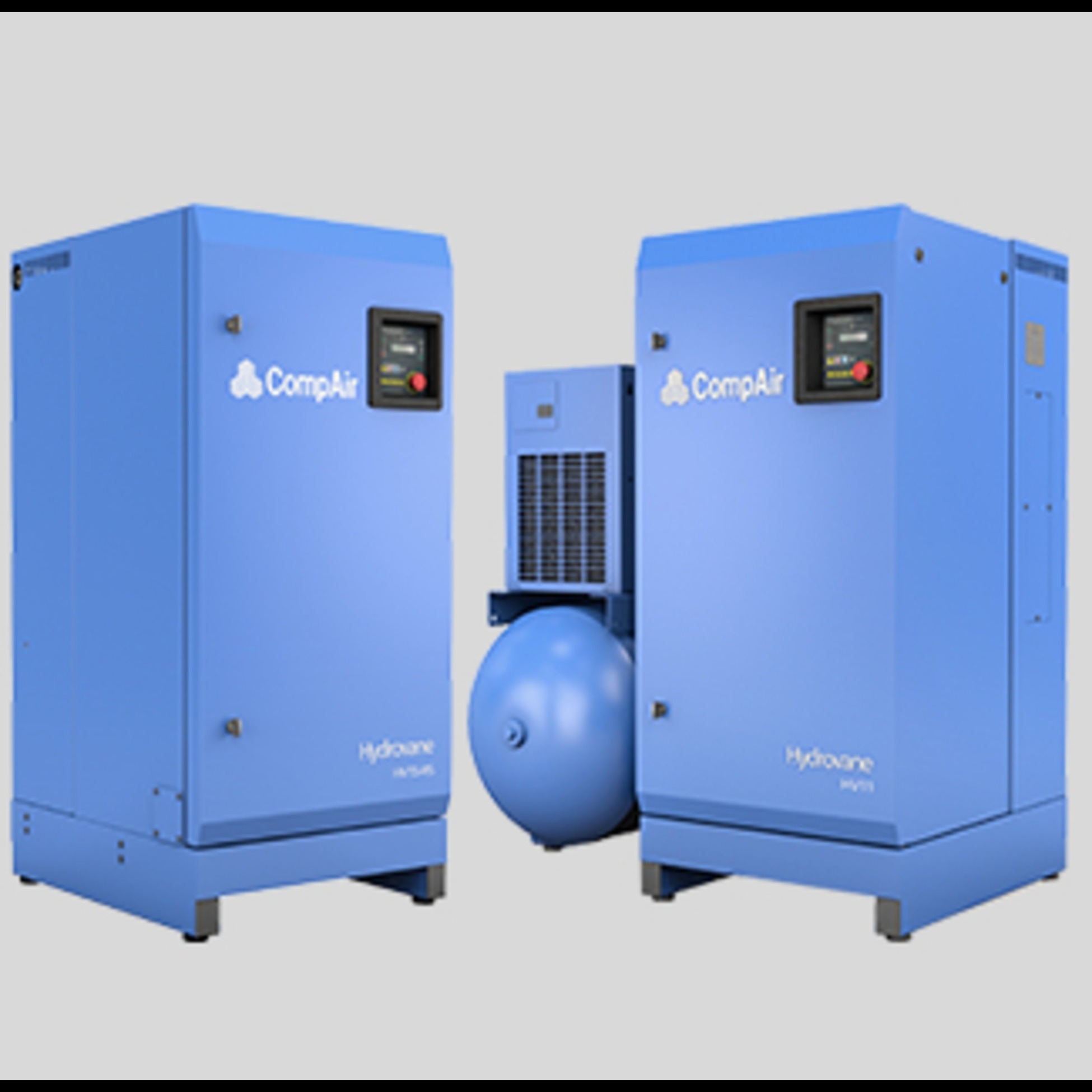

Rotary Vane Compressors HV 11 - 22 Series Rotary Vane Compressors hv11 hv22 teaser Hydrovane HV 11 - 22 series is enclosed for quiet operation, and with a small footprint and low noise levels these compressors can be conveniently located at the point of use. Known for their industry-leading reliability and versatility, Hydrovane compressors have become a market favourite, loved for their durable design and cost-effective performance. Over three-quarters of a million Hydrovane compressors have been installed worldwide, strengthening their position as a tried and trusted compressed air technology. Key Facts Enclosed Floor Mounted 50/60Hz 11-22kW 6-10 bar 1.37 to 3.60 m3/min 48.4 to 127 cfm Complete package options available with integrated air dryer and receiver Regulated Speed (RS) options available to match output to air demand iConn remote monitoring as standard Versatile & reliable by design Quiet as standard With noise levels as low as 66 dB(A) a Hydrovane can be located at the point of use. High quality air Clean, dry and pulse free straight from the outlet means less downstream equipment required. Slow speed 1450 - 2200 rpm speed operation results in low noise, low stresses and long life. Direct drive No gears, no belts. Up to 100, 000+ operating hours due to its simple integral design. Hypac 4-22kW ERD Fixed & Regulated Speed (RS) & 5 Series SE ACA 1.1-4kW Integrated Rotary Vane with Receiver, Dryer & Filters. You can save even further with our most comprehensive offering for optimum convenience. This solution is fully packaged with integrated receivers, refrigerant dryers and filtration, offering the best solution for your compressed air needs. Complete Package Integrated Refrigerant Dryer or Membrane Dryer Integrated Receiver Filter Pack 50 Hz 1.1 - 22 kW 6 - 10 bar 0.14 - 3.5 m3/min 4 - 125 cfm 🌬️ HV 11 – 22 Series Rotary Vane Compressors (Hydrovane) These are hydraulically‑lubricated rotary vane compressors designed for reliable industrial air supply with low noise, durable construction, and simple maintenance. 🔧 General Features Type: Rotary vane positive displacement compressors Design: Enclosed, floor‑mounted package for quiet operation and small footprint Drive: Slow speed direct drive (no belts or gears) — reduces vibration and wear Noise: Low sound levels (as low as ~66–71 dB(A)) Air Quality: Clean, dry, pulse‑free output directly from the compressor Monitoring: Equipped with remote monitoring (iConn) on many models Options: Available with integrated air dryer and air receiver packages Speed Options: Fixed speed and Regulated Speed (RS) variants available (RS matches output to actual air demand) 📊 Performance Specs (Typical) Model Series Motor Power Working Pressure Air Flow (FAD) Approx. Noise HV11 11 kW 6–10 bar ~1.37–1.74 m³/min (~49–62 cfm) ~69 dB(A) HV22 22 kW 8–10 bar ~2.96–3.60 m³/min (~105–127 cfm) ~71 dB(A) Note: Specific output varies by pressure and model configuration (e.g., RS vs fixed speed). ⚙️ Technology Highlights Rotary Vane Principle A rotor with sliding vanes rotates eccentrically inside a cylinder. As the rotor turns, the vanes create variable‑volume chambers that trap and compress air. Oil is injected to seal chambers and control heat, producing smooth, steady compressed air. Fewer moving parts means easier maintenance and high reliability. Slow Direct Drive Lower RPM (typically ~1450–1800 rpm) reduces noise and stress, helping these units achieve long service life with minimal wear. 🛠️ Variants & Options Fixed Speed Units: Operate at constant motor speed; good for stable air demand. Regulated Speed (RS): Adjusts output to match actual air usage for better energy efficiency. Package Options: Integrated dryers, filters, and receivers available to provide ready‑to‑use systems. 📌 Typical Applications These compressors are suitable for applications such as: Manufacturing & machining Pneumatic tools Packaging lines Laboratories Printing and automation environments
