Oil Free Air Compressors: Best Choice for Pure Air

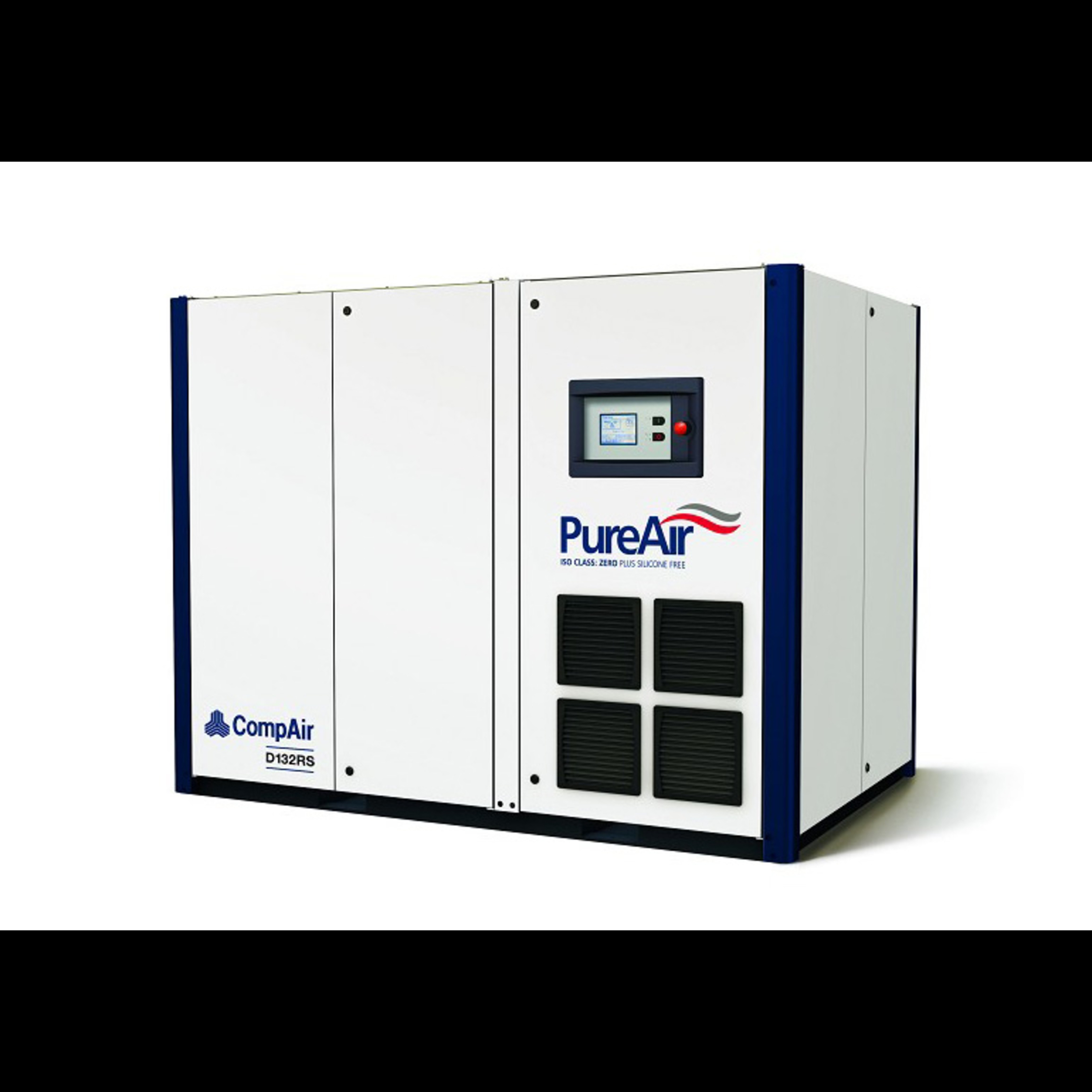

Two Stage Oil-Free Rotary Screw Compressors
Fixed and regulated speed rotary screw air compressors
The launch of this brand-new range of oil-free screw compressors offers the lowest total cost of ownership on the market, with up to 8% higher flow rates, up to 7% energy reduction and guaranteed air purity. These high output oil-free machines now cover a wide flow range from 14.6 to 28.3 m³/min. The DX90 to DX160 models are fixed speed and the DX90RS to DX160RS models are regulated speed.
Pressure range: 4 to 10.7 bar
Volume flow: Capacity of 6.7 to 28.3 m³/min
Motor power: 90 to 160 kW
Here’s a clear, structured informational article based on your headings:
Oil-Free Air Compressors: Best Choice for Pure Air
When your application demands clean, contaminant-free air, oil-free air compressors are the top choice. Unlike traditional oil-lubricated compressors, these units deliver air without any risk of oil carry-over — which is critical in industries like:
Food & Beverage
Pharmaceuticals
Medical & Healthcare
Electronics manufacturing
Laboratories
Painting and coating applications
Why Oil-Free Matters
Standard compressors use oil to lubricate internal parts. Although separators and filters remove most oil droplets, trace oil can still remain in the compressed air. In many sensitive processes, even tiny amounts of oil can cause product defects, contamination, or health risks.
Oil-free compressors solve this by:
✅ Eliminating oil contact with the airflow path
✅ Reducing risk of contamination
✅ Offering cleaner air for stringent quality standards (e.g., ISO 8573-1 Class 0)
✅ Cutting down filtration and maintenance costs over time
Two-Stage Oil-Free Rotary Screw Compressors
What Makes Them Special
A two-stage oil-free rotary screw compressor improves both efficiency and purity by compressing air in two separate stages:
First Stage: Air is drawn in and pre-compressed.
Second Stage: Air is further compressed to the target pressure with minimal heat and near-oil-free internals.
This staged approach leads to:
🌬 Higher discharge pressure
🌬 Lower energy consumption than single-stage units
🌬 Improved thermal efficiency
🌬 Greater reliability for continuous duty
Advantages Over Other Types
Feature Two-Stage Oil-Free Single-Stage Oil-Lubricated
Air Purity ★★★★★ ★★★ ★★
Energy Efficiency ★★★★★ ★★ ★★★
Continuous Duty Capability Excellent Moderate Good
Maintenance Complexity Medium Low Higher (filters/oil)
Best For Clean critical air Light intermittent work General industrial air
Ideal Applications
These compressors are especially suited for:
Cleanrooms and sterile environments
Food and pharmaceutical processing
Electronics assembly
Pneumatic tools in precision operations
Medical breathing air systems
Key Features to Look For
When evaluating oil-free rotary screw compressors, consider:
🔹 Pressure rating (psi / bar) — Match to your process needs
🔹 Airflow capacity (CFM / m³/min) — Enough for peak demand
🔹 Energy efficiency / IE class motor — Lower operating costs
🔹 Cooling system — Air-cooled vs. water-cooled based on ambient conditions
🔹 Serviceability — Easy access to components
🔹 Control systems — Automatic load/unload and variable speed drive (VSD) for efficiency
🔹 Certification — ISO class 0 oil-free compliance for critical use
Benefits at a Glance
✔ 100% oil-free air
✔ Suitability for high-purity environments
✔ Lower filtration costs
✔ Competitive energy efficiency, especially with two-stage designs
✔ Better reliability in continuous industrial operation
Conclusion
For industries where air purity is non-negotiable, oil-free air compressors, particularly two-stage rotary screw models, deliver clean, efficient, and reliable compressed air. They may have a higher upfront cost than oil-lubricated alternatives, but the long-term advantages — fewer filters, reduced downtime, and contamination-free output — often result in lower total cost of ownership.
