Rotary Screw Air Compressors
Lubricated Rotary Screw Compressor 22 - 30 kW

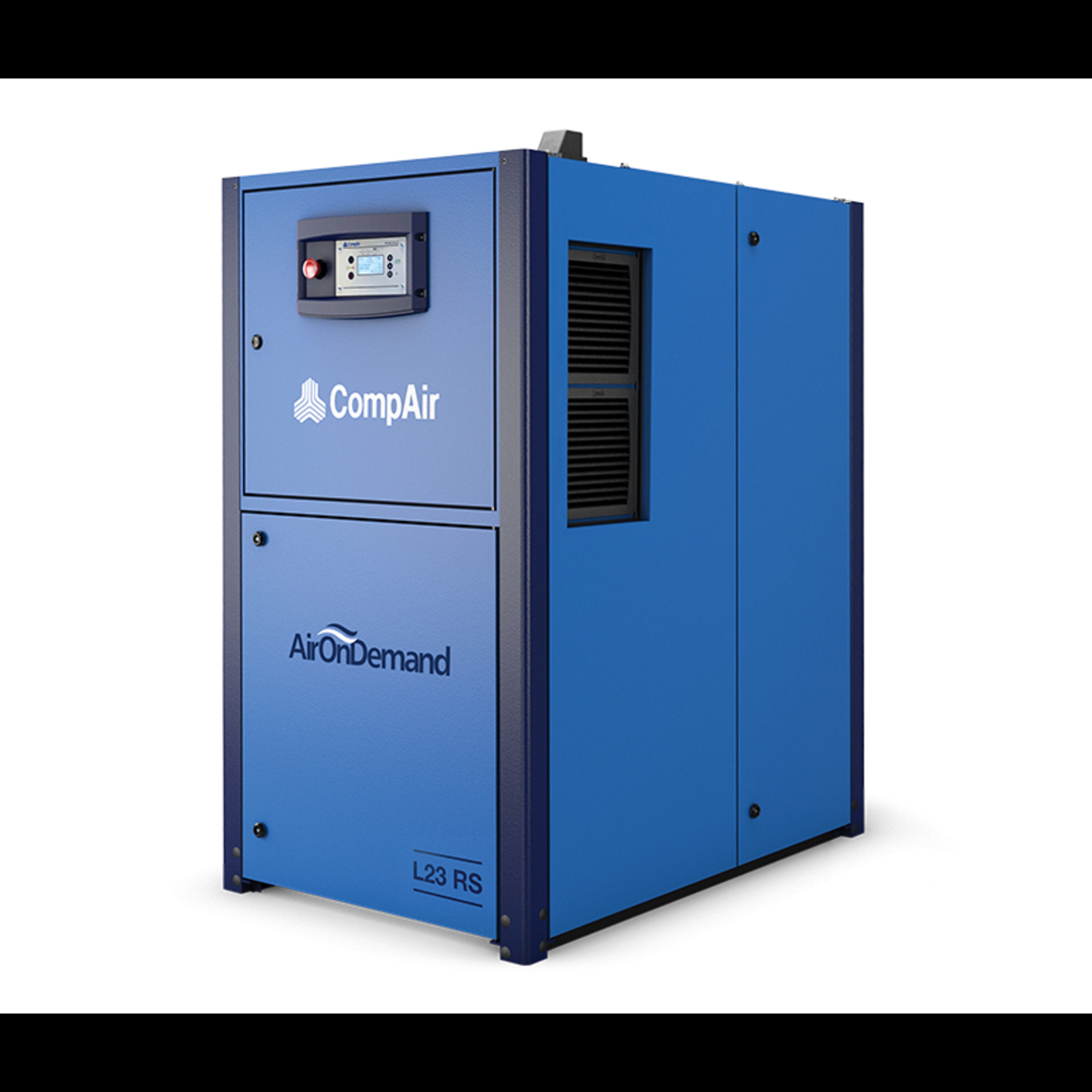

CompAir L23 - L29, RS
The L-Series from CompAir
Well known in the industry for quality and reliability CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L23-L29 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models.
Engineering Excellence
Benefits to you:
High reliability and high quality compressed air
Superior energy efficiency
High flexibility
Small footprint
Low maintenance & servicing costs
Engineering excellence
Premium efficiency airend
Time proven inverter concept
iConn industry 4.0 Solution
Integrated heat recovery
Water Separator
Compressed Air Filter
Condensate Drain Solution
Compressed Air Refrigerant Dryer
Heatless Desiccant Dryers
Heat Regenerative Desiccant Dryers
Nitrogen Generator
SmartAir Master Multi Compressor Controllers
📌 CompAir L23 – L29, RS | Lubricated Rotary Screw Air Compressors (22–30 kW)
📦 Product Description
The CompAir L23 – L29, RS series are industrial-grade lubricated rotary screw air compressors designed for 22 kW up to 30 kW motor power. These units are engineered for high reliability, energy efficiency and continuous operation in demanding compressed air applications.
🔧 Key Features & Benefits
Performance & Efficiency
Available in both fixed speed and regulated/variable speed (RS) versions, offering better energy efficiency and adaptability to varying air demands.
Energy-efficient, high-output compressor element designed for slow rotational speed—cuts energy costs.
Premium quality compressed air with low oil carryover (< 3 ppm) thanks to advanced separator systems (in many configurations).
Integrated oil filter and oil regulation valve with minimal external hoses for improved reliability.
Advanced Controls & Monitoring
Equipped with Delcos Pro controller (or equivalent) for easy monitoring, adjustable pressure and protection of the unit.
Some RS models include remote monitoring capability (e.g., iConn Industry 4.0).
Design & Serviceability
Small footprint and compact design.
Low maintenance needs and reduced servicing costs.
Options for integrated refrigerant dryers, heat recovery systems, condensate solutions, filters, and other compressed air accessories.
📊 Typical Technical Data (Indicative)
Model Motor Power Flow Range Pressure Range Noise Approx. Weight
L23 / L23RS 22 kW ~0.92–~4.1 m³/min ~5–13 bar ~67–68 dB(A) ~650–680 kg
L26 / L26RS 26 kW ~1.0–~4.8 m³/min ~5–13 bar ~68–69 dB(A) ~680–710 kg
L29 / L29RS 30 kW ~1.0–~5.5 m³/min ~5–13 bar ~69 dB(A) ~680–712 kg
Ranges depend on pressure setting and RS vs fixed-speed versions.
⚙️ Typical Applications
These compressors are widely used in industrial and manufacturing environments where reliable and consistent compressed air is needed, such as:
Machine tools and automation
Plant air lines
Material handling systems
Pneumatic tools and equipment
Packaging and assembly lines
Process air for food & beverage, textiles, automotive, etc.
✔ Energy savings with regulated speed models
✔ Proven reliability and low maintenance overhead
✔ Flexible system configuration with integrated treatment options
✔ Industrial control and connectivity for performance monitoring
