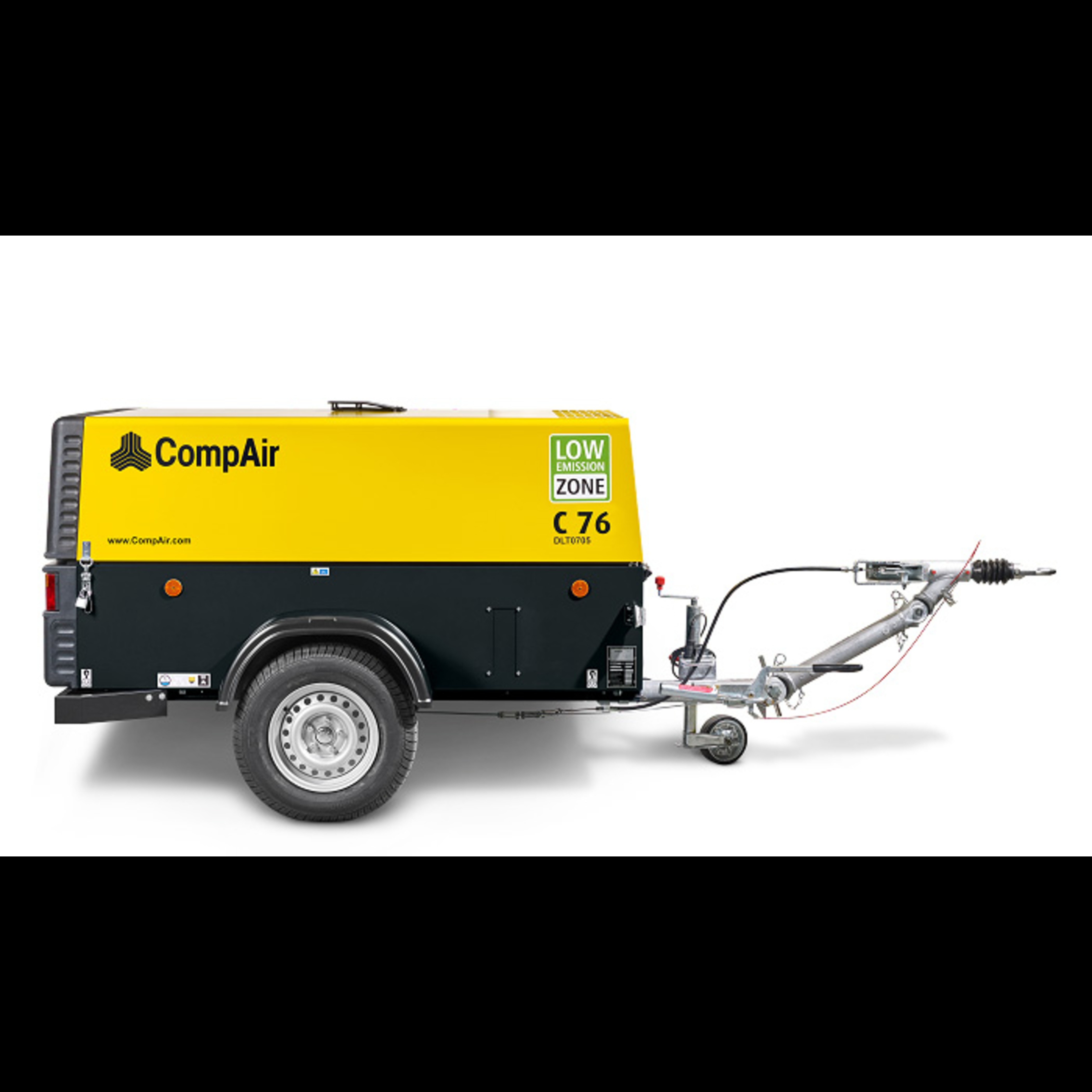

Mobile Compressor 7 to 14 bar
C55-14 - C76
Volume flow
5.5 to 7.6 m3/min
Operating pressure
7 to 14 bar
Motor power
53.7 kW
Weight
1, 350 kg
Applications
Concrete spraying
Drilling, ramming and pulling
Earth rockets
Shooting fibre optic cables
Paint spraying/spraying
Dry ice and sand blasting
Rehabilitation of drinking water supplies
Combined compressed air or generator operation
This compressor series is characterised by its low diesel consumption, which is 10 % lower than that of previous models. Equipped with a diesel particulate filter and FPM (Flexible Power Management), the modern compressors comply with the EU Stage V emissions standard. Pressure variants up to 14 bar make this compact series extremely versatile and fulfil the requirements of numerous applications. The tool storage space under the bonnet offers room for two hammers, pointing irons or other pneumatic tools. Separate air filters for the motor and compressor ensure a long service life. All maintenance points are easily accessible.
Features
Yanmar 4TNV98CT with exhaust stage EU V
High efficiency airend, designed and manufactured in our own facility in Germany
Mobile 5 program: up to 5 years warranty on the package except engine
Bolted single sheets.
Galvanised, electrostatically powder-coated
Hinged hood with two robust gas springs
Robust plastic protection
Optional compressed air filtration
Standard fuel pre-filter with water separator
Separate air filters for engine and compressor with safety element
Volume flow control
Oil filter is screwed onto the compressor block
Main electrical cut-off switch inside the compressor enclosure
Standard battery main switch
Benefits
Future-proof investment with the latest and most economical technology
Low consumption of engine power, energy and fuel
Operational safety with warranty
Quick and economical to replace when damaged. Excellent protection against corrosion
Good accessibility for maintenance
Robust plastic protection
Technically oil-free in accordance with ZTV-ING Part 3 Section 4
Long engine service life thanks to effective separation of water and dirt
Long filter lives, long maintenance intervals and high operational reliability
Engine speed and suction control are automatically adapted to the compressed air requirement
